Description
FILLET 200-1200
200(w) x 1200(l) mm
Fall: 30mm to 25mm
FILLET 500-1200
500(w) x 1200(l) mm
Fall: 30mm to 25mm
FILLET 1000-1200
1000(w) x 1200(l) mm
Fall: 35mm to 25mm
New Fillet Sizes (coming soon)
Fillets for the 1m x 1.5m trough drain traverse shower base [Code: MXPST 1.0-1.5 TDTV] & 1.2m x 1.6m wedge base [Code: MXPSW 1.2-1.6].

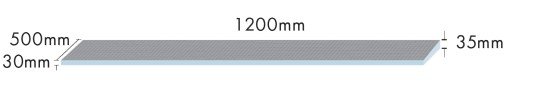

FILLET 500-1200 TDTV1M
500(w) x 1200(l) mm
Fall: 35mm to 30mm
FILLET 1000-1200 TDTV
1000(w) x 1200(l) mm
Fall: 40mm to 30mm
Fillets for the 1m x 2m trough drain traverse shower base [Code: MXPST 1.0-2.0 TDTV]

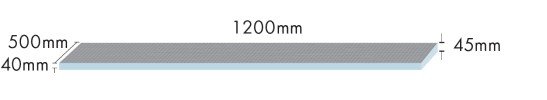

FILLET 500-1200 TDTV2M
500(w) x 1200(l) mm
Fall: 45mm to 40mm
FILLET 1000-1200 TDTV2M
1000(w) x 1200(l) mm
Fall: 50mm to 40mm
Side Fillets
Side fillets can be used to extend the width of the channel drains (traverse & longitudinal)

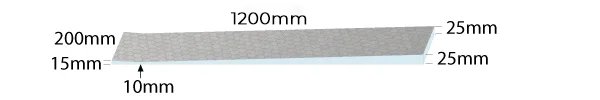

SIDE FILLET 200-1000
200(w) x 1000(l) mm
Fall: 25mm to 15mm
SIDE FILLET 200-1200
200(w) x 1200(l) mm
Fall: 25mm to 15mm
SIDE FILLET 200-1500
200(w) x 1500(l) mm
Fall: 30mm to 15mm
SIDE FILLET 200-2000
200(w) x 2000(l) mm
Fall: 40mm to 15mm
Wedge Fillets
A wedge fillet and packer are designed to be used with Wedge shower bases
FILLET 1101200
110(w) x 1200(l) mm
Fall: 15mm to 10mm
Packer
75(w) x 1200(l) X 10(d) mm
Code: PACKERS10
Eco-Friendly
Low Cost
Waterproofed
Easy to Install
